產品特色
ZCOM電信商級無線控制器搭載Intel 平台，將原本設置於單個無線存取點的管理功能轉移至電信商級無線控制器，進而協助客戶達到集中管理和監控所有的無線存取點之目的，而無線存取點僅保留基本的無線接入和安全功能。
此外，當瘦身後的無線存取點(TAP)僅需執行符合IEEE 802.11 規範的基本功能時， 電信商級無線控制器可更專注於無線存取點的組網配置、用戶認證、數據流量發送、無線資源管理、接取控制、QoS和負載平衡…等功能。
ZCOM電信商級無線控制器所屬的應用結構，具備可控制、可管理的特色，可化繁為簡，最適用於複雜的Wi-Fi架構環境。
| 電信商合作經驗豐富 豐富的電信合作經驗，整合Wi-Fi與電信服務系統，支援3G/4G核心網與無線網路融合及各類型協議和認證機制 (AAA, Captive Portal)所屬的呼叫流程 (Call Flow)。 |
| 集中管理平台 內建集中管理平台，以軟體定義網路(SDN)架構為開發基礎，效能和效益再升級。 |
| 堅固產品設計 高階可靠的硬體規格，靈活彈性的軟體設計，更有高可靠度的N+1備援機制，確保網路不因意外而暫停服務。 |
| 適用各式應用場景 支援集中轉發與本地轉發模式，可視客戶需求進行靈活的網路規畫，同時以高功率、高增益天線的無線存取點與橋接器產品為輔，可支持各式應用場景如：都會區與高密度人口、郊區或偏鄉地區...等網路佈建。 |
| 安全性 支援各類型協議和認證機制(AAA, Captive Portal)所屬的呼叫流程(Call Flow) |
系列產品：

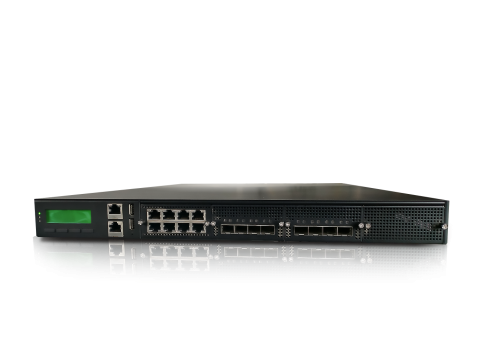

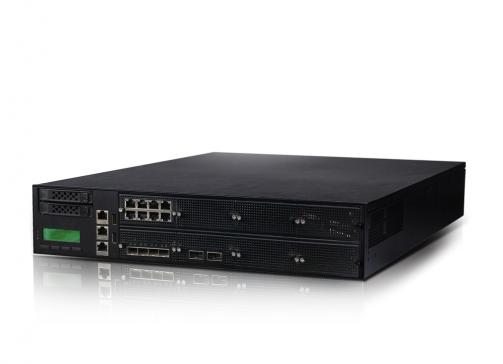

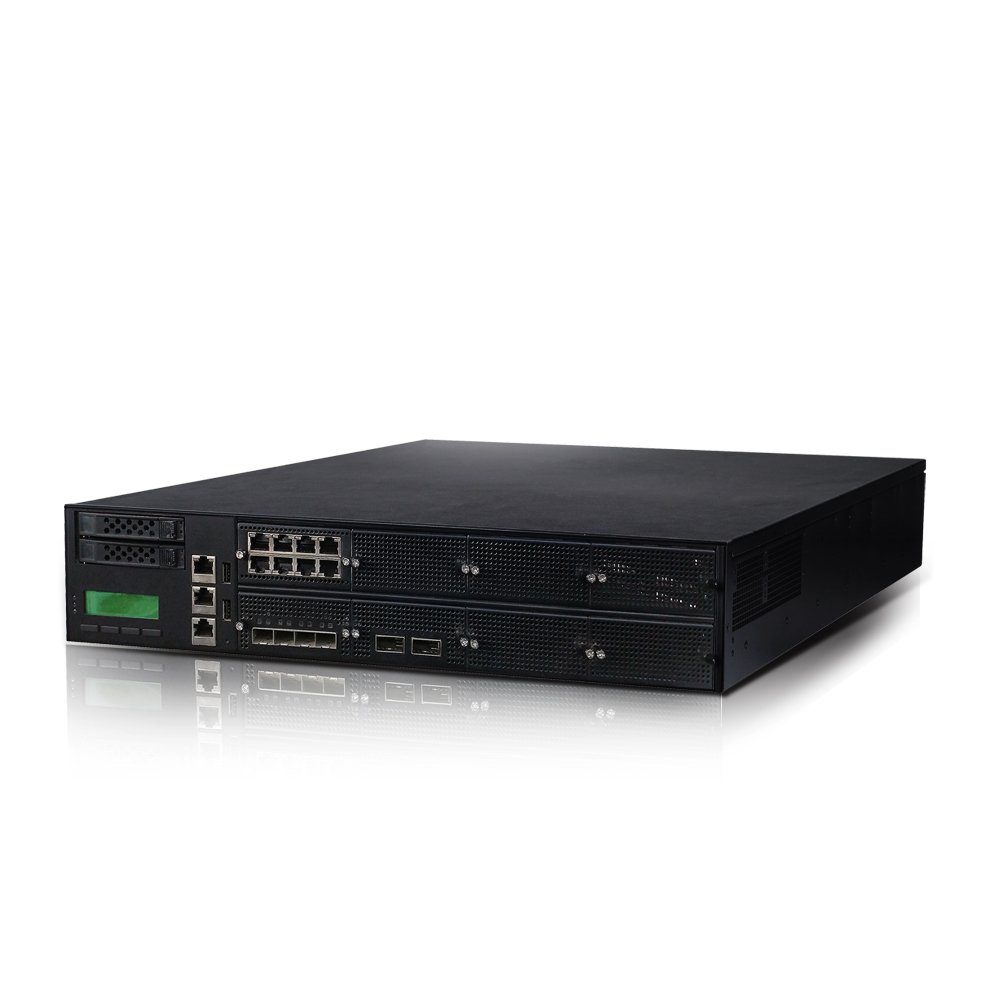

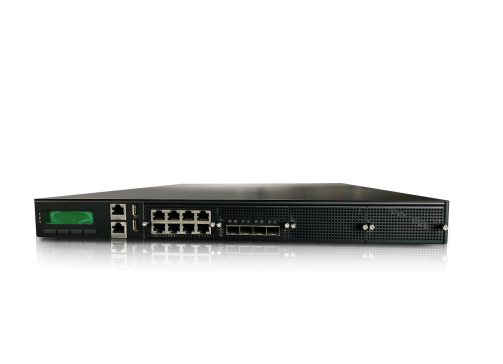

WS200G2 | WS500G2 | WS1000G2 | ||
CPU | Model | Intel | Intel | Intel |
Quantity | 1 | 2 | 2 | |
Memory | DDR4 16G | DDR4 32G | DDR4 128G | |
Management Ports | 1GbE RJ45 | 8 | 8 | 8 |
10GbE SFP+ | 4 | 8 | 4 | |
40GbE QSFP | - | - | 2 | |
Storage | SSD 64G | SSD 64G | SSD 128G | |
Chassis | 1U | 1U | 2U | |
L2 Switch Capability | Yes | Yes | Yes | |
Power Supply | 220AC/650W Redundancy | 220AC/650W Redundancy | 220AC/800W Redundancy | |
AP Capacity | 2048 | 4096 | 8192 | |
MAC Address Table | 64K | 127K | 127K | |
Max. Number of VLANs | 4K | 4K | 4K |
| Chassis | WS200G2: 1U WS500G2: 1U WS1000G2: 2U |
| CPU | WS200G2: Intel WS500G2: Intel WS1000G2: Intel |
| Memory | WS200G2: DDR4 16GB WS500G2: DDR4 32GB WS1000G2: DDR4 64GB |
| Storage | WS200G2: SSD 64GB WS500G2: SSD 64GB WS1000G2: SSD 128GB |
| Power Supply | WS200G2: 220VAC Dual Redundancy WS500G2: 220VAC Dual Redundancy WS1000G2: Dual 800W AC PSU Redundancy |
| Dimension | WS200G2: 630 (L) x 438 (W) x 44 (H) mm WS500G2: 630 (L) x 438 (W) x 44 (H) mm WS1000G2: 630 (L) x 438 (W) x 88 (H) mm |
| Capacity | WS200G2: Thin AP: 2048 User Endpoints: 64K UE Data Traffic: 20Gbps WS500G2: Thin AP: 4096 User Endpoints: 127K UE Data Traffic: 40Gbps WS1000G2: Thin AP: 8192 User Endpoints: 127K UE Data Traffic: 60Gbps |
| AP Access & Configuration | DHCP Option43 for Discover WLC CAPWAP Tunnel Auto Downloading Configuration Templates |
| UE Authentication & Accounting | 802.1x EAP SIM EAP Portal Radius WPA/WPA2 Radius |
| Performance | Load Balance for UE Accessing & Traffic QoS Traffic Centralized Forwarding by DPDK UE Uplink/Downlink Bandwidth Control VLAN/SSID Bandwidth Control |
| Security | Packets Limitation Counter DoS Attack ACL Rogue AP Detection Firewall & WIPS |
| RF Management | Interference Spectrum Analysis RF Optimization Auto TX Power Control Auto Channel Selection |
| Mesh and WDS | Supported |
| Reliability | WEB UI SNMP N+1 Backup |
| 10/100/1000Base-TX | WS200G2: 8 RJ45 WS500G2: 8 RJ45 WS1000G2: 8 RJ45 |
| 10G Base-SX | WS200G2: 4 SFP+ WS500G2: 8 SFP+ WS1000G2: 4 SFP+ |
| 40G Base-SR | WS200G2: N/A WS500G2: N/A WS1000G2: 2 QSFP |
| L2 Switch Capability | Supported |
| Connection Architecture | OpenFlow 1.3 Support Control/Data Plane Separation |
